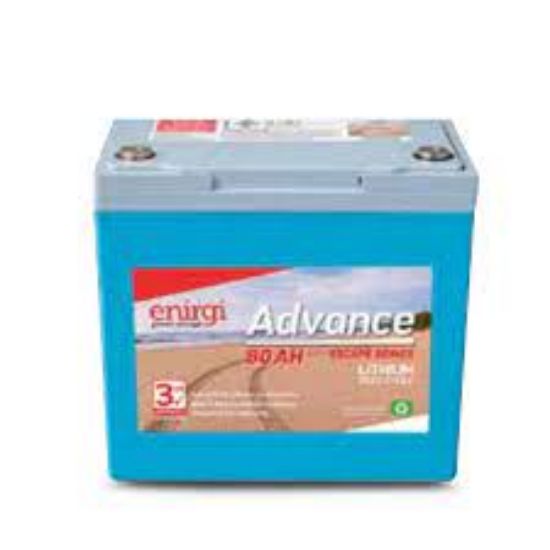

Enirgi Escape Lithium Cell 80Ah Deep Cycle Battery
Rechargeable Lithium LiFePO4 high power modules to handle anything SLA can. Get 100% capacity utilisation at less than half the weight. Advanced battery technology for cyclic and motive power applications such as mobility, recreational caravan & RV, marine, medical equipment, solar applications and more.
WHY ADVANCE ESCAPE?
- Proven Quality - Advance Escape is manufactured in a fully integrated facility, to international standards of excellence in quality, environment and safety: ISO9001, ISO14001 and ISO45001.
- Certified Safety - Advance Escape has been certified and tested to the highest international safety standards at both cellular and battery level: UL1642, UN38.3
WHY LITHIUM ION FERROUS PHOSPHATE (LiFePO4)
- The safest of all the known lithium ion technologies globally
- Smaller than any other commercial size battery type
- Less than half the weight of a lead-acid battery
- Wider temperature range and higher temperature
- Higher cycle life than any other commercial sized battery
- Ultra low self discharge makes it ideal for intermittent use
- LiFePO4 is the most robust chemistry under extreme conditions
- Environmentally friendly: LiFePO4 batteries have no poisonous or harmful substances, whether in production or in use.
- Best direct replacement for deep cycle duty.
Applications:
- Caravans, Camping & 4WD.
- Marine
- Solar/Wind Energy Storage.
- UPS & Back-Up Power.
- Electric Vehicles & Mobility.
Specifications:
- Nominal Voltage: 12.8V
- Nominal Capacity: 80 ± 3Ah (0.2C)
- Nominal Energy: 1013Wh
- Internal Resistance: ≤ 40mΩ
- Cycle Life:BMS: Over Charge, Over Discharge, & Over & Under Temperature Protection, & Cell Balancing.
- ≥ 1,600 @ 0.2C (100% DOD)
- ≥ 3,200 @ 0.2C (80% DOD)
- ≥ 5,600 @ 0.2C (50% DOD)
- Charge Voltage: 14.4 ± 0.15V
- Charge Profile: CC @ 0.2C to 14.4V, then CV @ 14.4V. Current ≤ 0.01C (CC/CV)
- Charge Current: 16A
- Maximum Charge Current: 40A
- Continuous Current: 40A
- Max Continuous Current: ≤ 56A
- Max Pulse Current: 56-200A (≤ 20ms)
- Cut-Off Voltage: About 10.0V
- Charge Temperature: 0˚C to 45˚C
- Discharge Temperature: -20˚C to 60˚C
- Storage Temperature: 0˚C - 40˚C
- Material System: LiFePO4
- Case Material: Plastic
- Weight: 9.5 ± 0.5kg
- Terminal: M6
- Warranty: 3 Years * Private Use * Do Not Use Under Bonnet.
