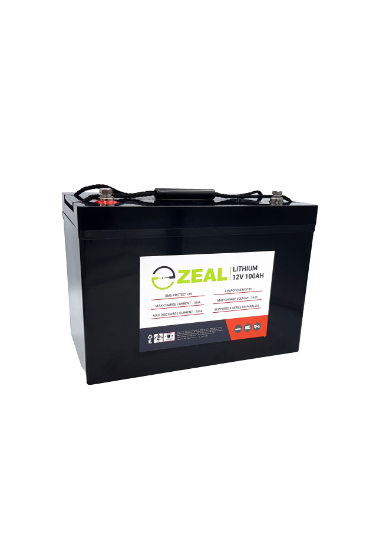

Zeal Lithium

Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution which provides the core performance and safety advantages of a modern lithium battery in a sturdy design.

Backed by SPB, a company with over 25 years of experience in the energy storage industry, and designed to the best possible specifications, you can be confident that Zeal lithium has had every detail thoroughly examined in delivering a high-value solution.

Safe And Stable

Zeal provides a high degree of safety by utilising light-weight aluminium encased LiFePO4 prismatic cells, which are among the safest and most stable lithium cells available.It is also supported by an integrated BMS that protects against overcharge/discharge, temperature and short circuit events for complete confidence when in operation

Core Lithium Advantages

A perfect AGM replacement, Zeal comes complete with a 3-year warranty and all the features you would expect from a LiFePO4 product including fast recharge capabilities, low self-discharge rate, long runtime and more usable capacity for power when you need it most.

Need a larger solution? Up to 4 batteries can also be connected in parallel or series configurations to meet the needs of more
demanding systems.

Specifications

 Part No.           SLZ12V100S

Nominal Voltage   12.8V

Nominal Capacity (25ºC, 0.33C) 100Ah

Dimensions Length 306±3mm Width 167±3mm Total Height 211±3mm Approx.

Weight 12.8kg

Characteristics

Max. Discharge Current 100A

Max Pulse Discharge Current (3 sec) 300A

Max Charge Current 100A

Recommended Charge Current < 50A

Max Charge Voltage 14.6V±0.2V

Standby Voltage 13.8±0.2V

Cut-off Voltage 10V

Terminal type M8

Cycle Life (100% DoD) 1800+

Operating Temp - Charge 0o C - 45ºC

Operating Temp - Discharge -20ºC - 60ºC

Short Circuit Release Yes

Max. Series / Parallel Configuration 4S or 4P

Cell Type Prismatic Cell

Chemistry Lithium Iron Phosphate (LiFePO4)

BMS Protection Yes

Warranty 3 Years
