Specifications: |

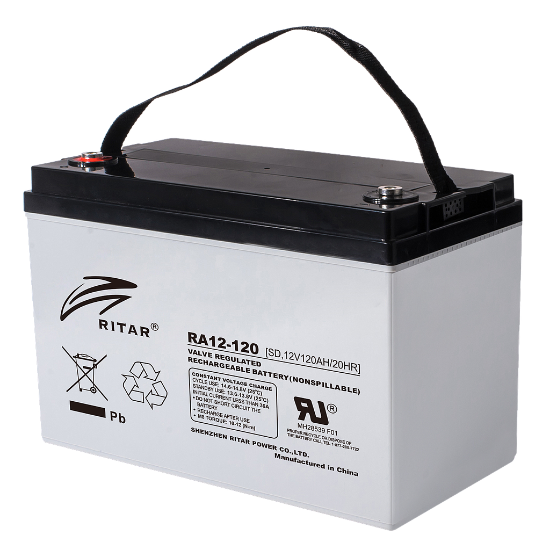

Model number: | RA12-120SD |
Case: | 31 / DC120-12 |
| Voltage: | 12V |
Amp Hours: (C20) | 120AH |
| Amp Hours: (C10) | 117.5AH |
Terminal layout: | Left hand Positive |
Terminal Type: | M8 Terminal |
Dimensions (LxWxH): | 328mm x 172mm x 212mm 222mm Total height |
Weight: | 32.0KG |
DC (AGM Deep Cycle) series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.
General features:
Higher reliability and quality- Throughout the whole manufacturing process, PPM and ISO 9001 are carried out to make sure that the product reliability and defect ratio meet with the PPM standard.
Higher power density- A special assembly technology is used to enhance power density to a considerable level.
Reliable construction- The extra strong construction ABS container reduces case bulging and plate warping, ensuring long life and high performance.
Valve regulating- Perfect venting system, which operates under low pressure, is designed to release excess gas and keep the internal pressure within the optimum range of safe and efficient performance.
Excellent recovery from deep discharge- Unique technical processes are used into the grid alloy and electrolyte additives, so that the battery can be recharged easily to a normal level even after being over-discharged
